INTRODUCTION
Series: HZS Series
Classification Concrete Mixing Plant
Contact information: RTZK2003@163.com
PRODUCT
Related cases
-
Double HZS180F concrete mixing station
-
HZS180 concrete mixing station
-
HZS180 concrete mixing station
-
HZS120F concrete mixing station
-
Double HZS120F concrete mixing station
-
HZS180 concrete mixing station
-
HZS180 concrete mixing station
-
HZS120 concrete mixing station
-
HZS120 concrete mixing station
-
HZS120 concrete mixing station
Product Parameters
| Parameter | Unit | HZS60T | HZS90T | HZS120T | HZS180T |
| Theoretical productivity | ㎥/h | 60 | 90 | 120 | 180 |
| Model of mixer | / | JS1000 | JS1500 | JS2000 | JS3000 |
| Power of mixer | kW | 2x22 | 2x30 | 2x37 | 2x55 |
| Recycling period | S | 60 | 60 | 60 | 60 |
| Mixer | L | 1000 | 1500 | 2000 | 3000 |
| Max size of aggregate | mm | ≤80 | ≤80 | ≤80 | ≤80 |
| Capacity of powder silo | t | 2x100 | 3x100 | 4x100 | 4x150 |
| Batching capacity of he batching station | L | 1600 | 2400 | 3200 | 4800 |
| Capacity of aggregate silo | ㎥ | 3x10 | 4x15 | 4x20 | 4x25 |
| Material discharging height | m | 4.2 | 4.2 | 4.2 | 4.2 |
| Iinstalled power | kW | 120 | 150 | 190 | 240 |
| Maximum capacity of screw conveyor | t/h | 40 | 40 | 80 | 80 |
| Aggregate weighing range/accuracy | kg | 1500±2% | 2000±2% | 2000±2% | 3000±2% |
| Cement weighing range/accuracy | kg | 600±1% | 800±1% | 1200±1% | 1800±1% |
| Coa powder dosing range/accuracy | kg | 300±1% | 400±1% | 600±1% | 800±1% |
| Water dosing range/accuracy | kg | 400±1% | 500±1% | 600±1% | 800±1% |
| Addtive dosing range/accuracy | kg | 30±1% | 30±1% | 30±1% | 50±1% |
Product Details
| Product overview |

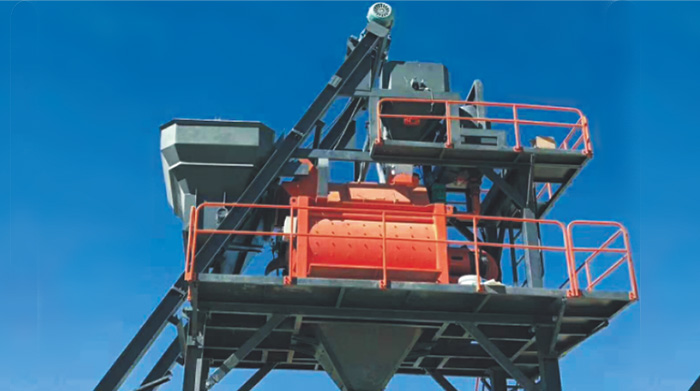

| Runtian Bucket-lifting Type Concrete Mixing Plant has significant features such as integrated design, environmental protection and energy conservation, safety and reliable, to achieve precise dosing, and stable performance. It is widely used in the construction of highways, railways, municipal, and urban projects |
| Product characteristics | |
| 1 Compact structure, efficient production: Modular structure design, small area covering, flexible placement as per actual site condition, multi-directional discharging, each optimized components are with equal efficiency with belt conveyors transportation. |
 |

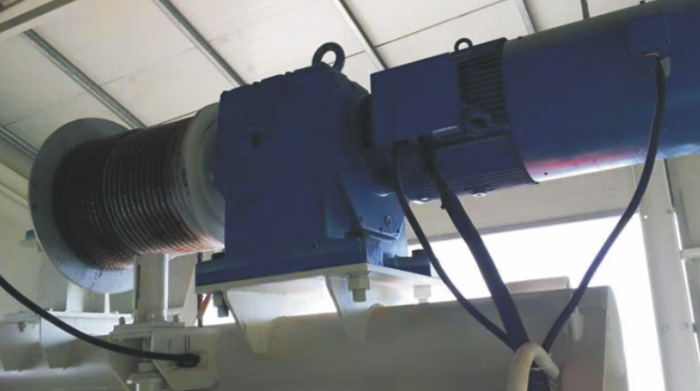

| 2 The optimized design of the lifting bucket has a large volume, smooth feeding, and a forward center of gravity, making it more stable; Using dynamic lifting points for material loading, ensuring smooth lifting without bias load; Loose rope protection limit, no reverse rotation, safe and worry free; The lifting motor adopts high-power electromagnetic braking motor, which is stable and reliable. |
 |

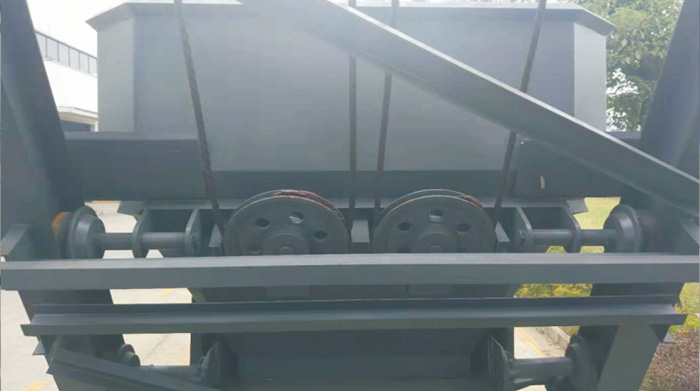

| 3 Wear parts are reliable & durable: tempered H-type steel rails avoids rail deformation. The lifting bucket is protected by intelligent devices such as sensors and travel switches during operation, making it safe and reliable. The double wear-resistant pulley and double steel wire rope design extends the service life of vulnerable parts such as the pulley and steel wire rope to over 50,000 m3bucket never drops. |
 |

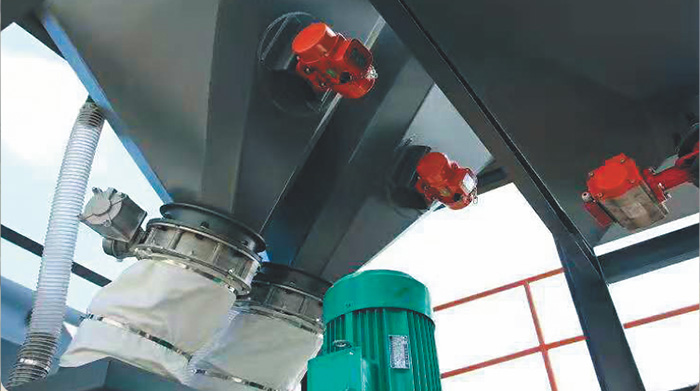

| 4 Accurate dosing,the powder scale body adopts an octagonal design, with good rigidity and smooth unloading; Independent and free scale frame, with pneumatic self balancing technology to prevent the occurrence of supporting and pulling scales. All materials are measured with coarse and fine precision, with high accuracy; Each weighing hopper has an adaptive intelligent weighing function, which makes it more accurate to use; The scale bucket has a large capacity and is suitable for more proportioning requirements. |
 |
