INTRODUCTION

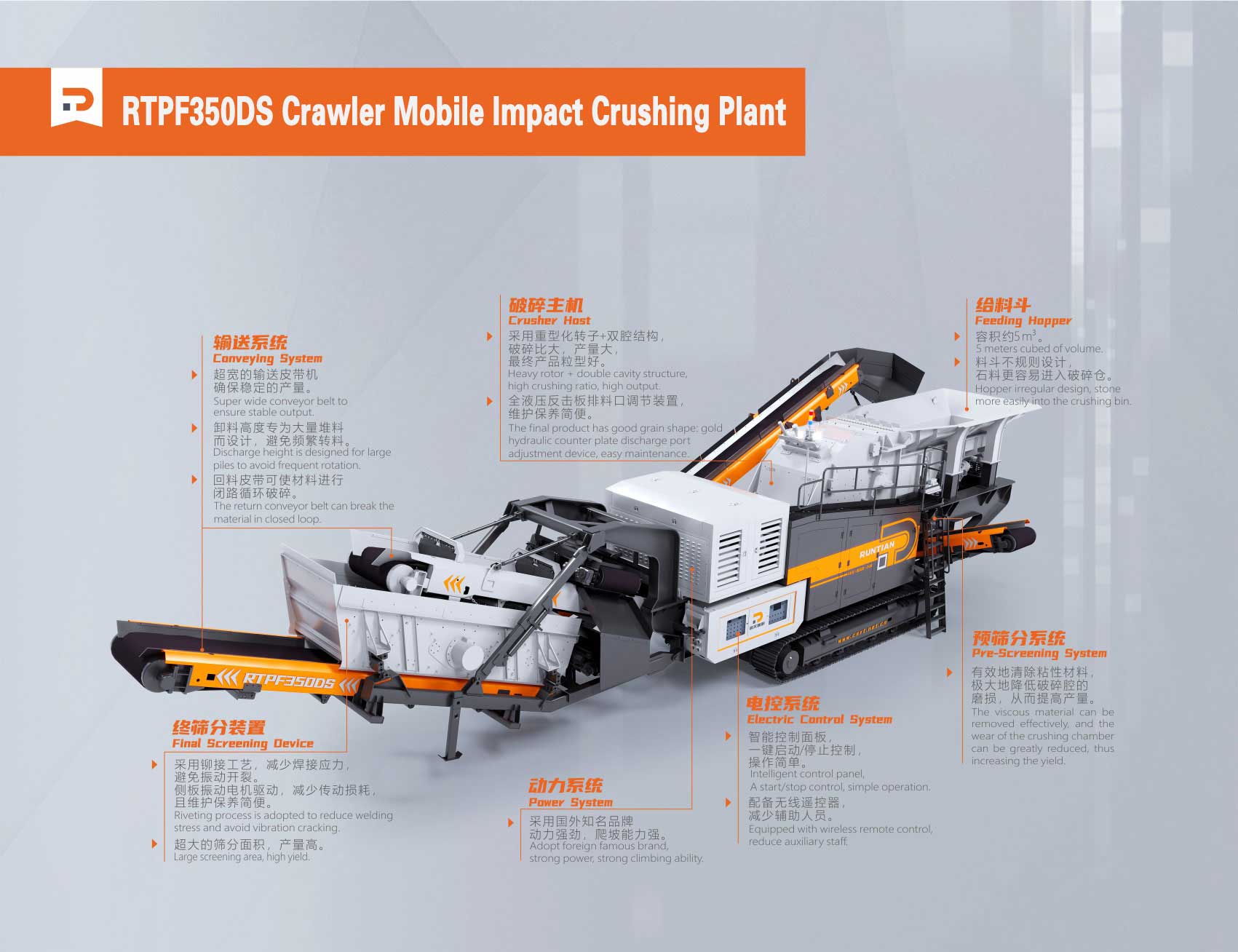

Series: RTPF350DS
Classification Sand and gravel crushing and screening Plant
Contact information: RTZK2003@163.com
PRODUCT

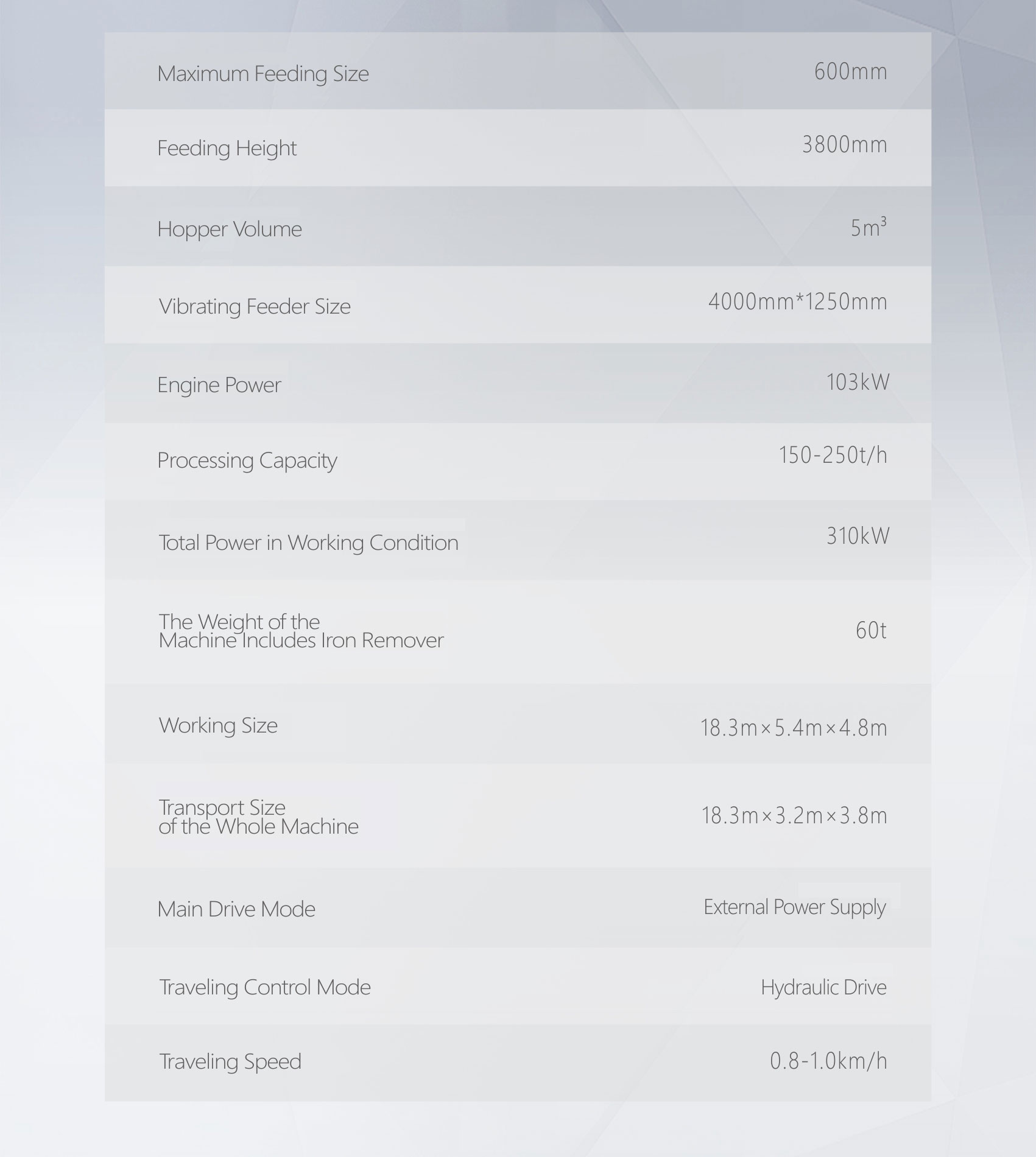

Product Parameters
| Parameter | Unit | RTPF350DS |
| Maximum Feeding Size | mm | 600 |
| Feeding Height | mm | 3800 |
| Hopper Volume | ㎥ | 5 |
| Vibrating Feeder Size | mm | 4000x1250 |
| Engine Power | kW | 103 |
| Processing Capacity | t/h | 150-250 |
| Total Power in Working Condition | kW | 310 |
| Tlotal Machine Weight Including Iron Remover | t | 60 |
| Working Size | m | 18.3x5.4x4.8 |
| Transport Size | m | 18.3x3.2x3.8 |
| Main Driving Mode | / | External Power Supply |
| Traveling Control Mode | / | Hydraulic Drive |
| Traveling Speed | km/h | 0.8-1.0 |

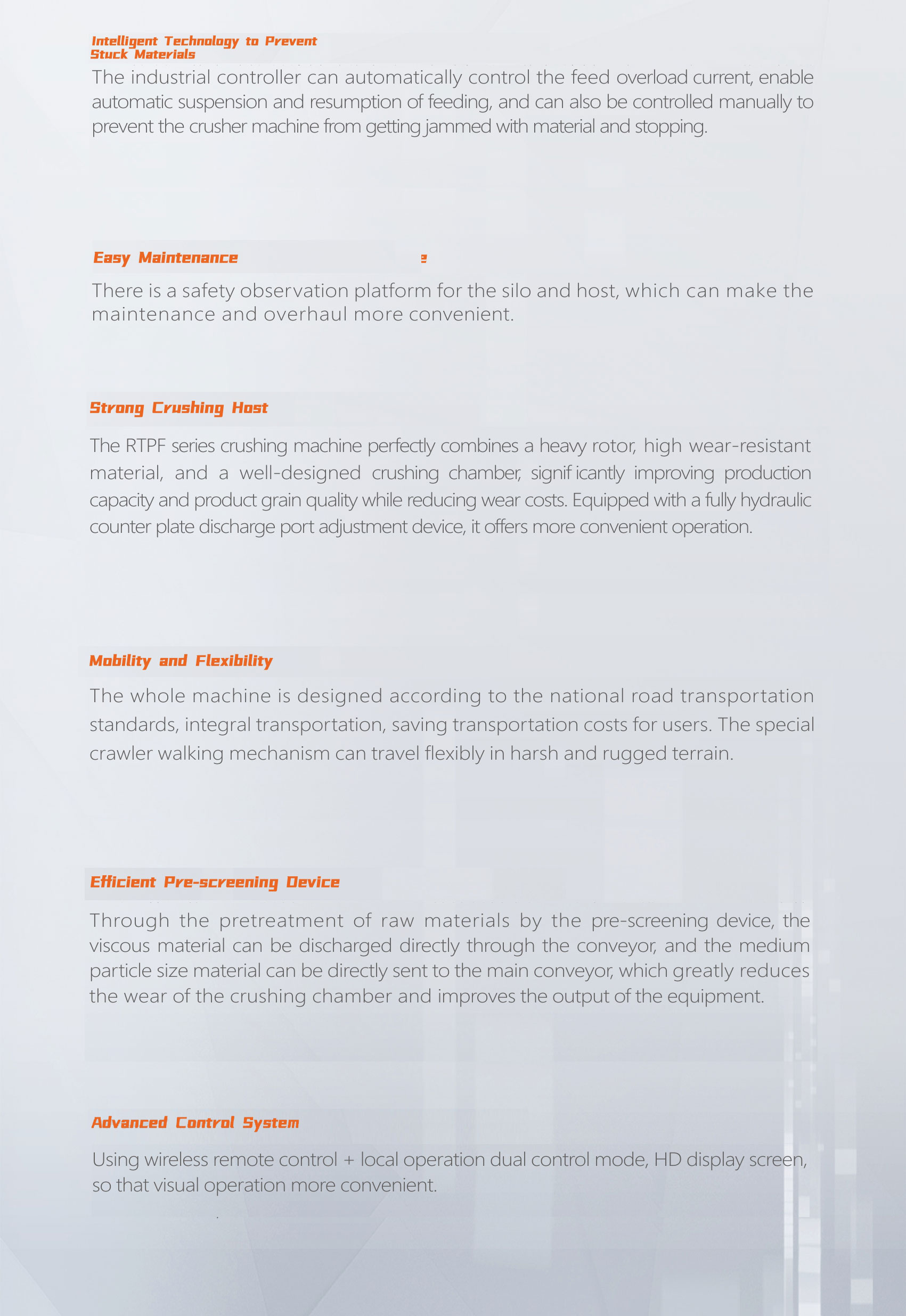

Product Details
