INTRODUCTION

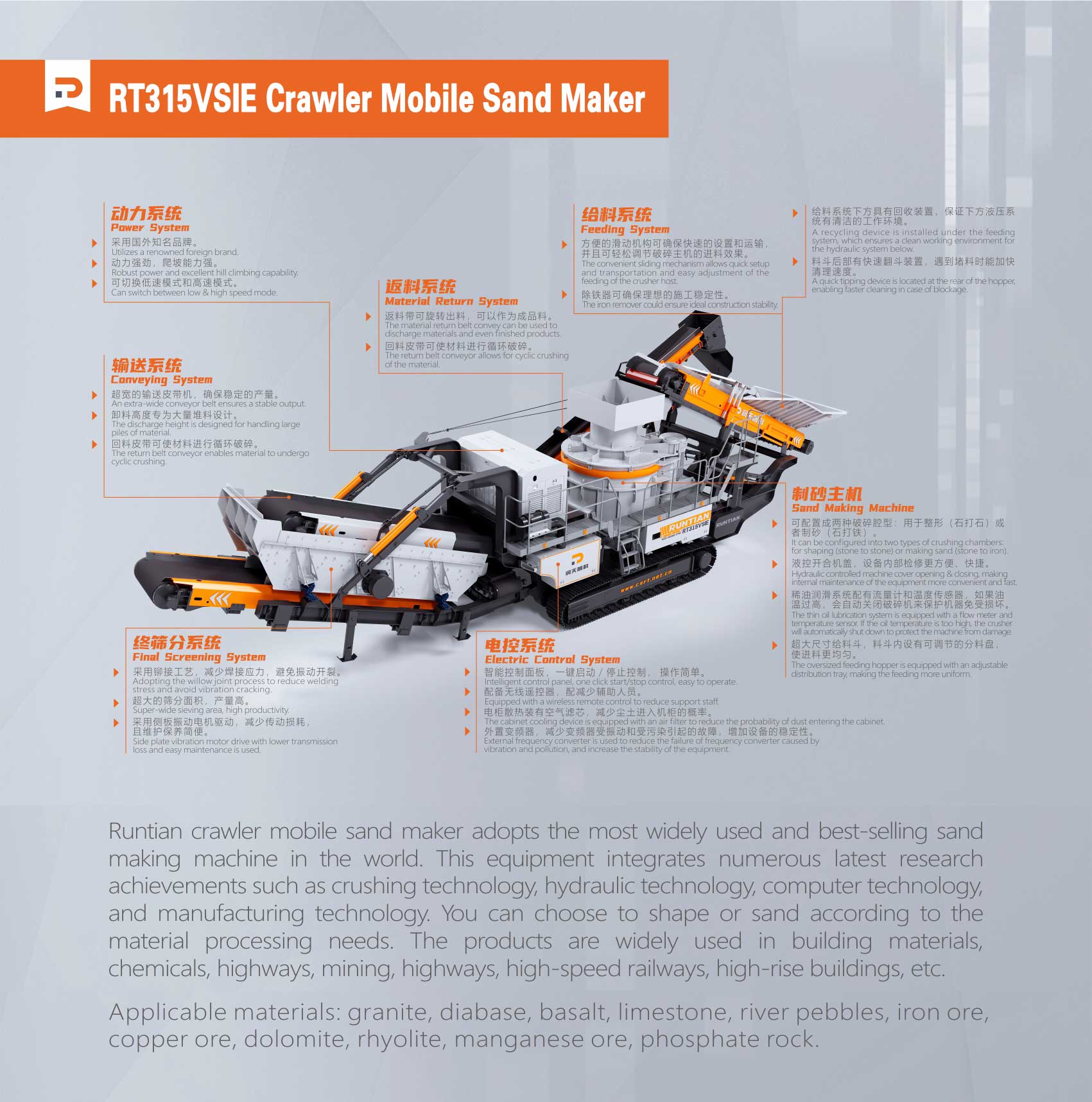

Series: RT315VSIE
Classification Sand and gravel crushing and screening Plant
Contact information: RTZK2003@163.com
PRODUCT
Product Parameters
| Parameter | Unit | RT315VSIE |
| Feeding Equipment - Feeding Capacity | t/h | 500 |
| Feeding Conveyor - Belt Width | mm | 1000 |
| Feeding Conveyor - Feeding Height | mm | 2950 |
| Pre-sieving - Length x Width | mm | 2000x1200 |
| Crusher - Vertical Shaft Impact Crusher | / | SK2400 |
| Crusher - Feeding Particle Size | mm | 40 |
| Crusher - Discharge Particle Size | mm | 0-4.75 |
| Crusher - Crusher Power | kW | 315 |
| Main conveyor - Belt Width | mm | 1000 |
| The End Product Conveyor - Belt Width | mm | 1000 |
| The End Product Conveyor - Stacking Height | mm | 2500 |
| Return Sieve - Length x Width | mm | 4500x1600 |
| Transmission Conveyor - Length x Width | mm | 4500x1600 |
| Return Conveyor - Belt Width | mm | 550 |
| Entire Machine - Total Power | kW | 364.5 |
| Entire Machine - Entire Machine Weight | t | 55 |
| Entire Machine - Processing Capacity | t/h | 60-80 |
| Entire Machine - Entire Machine Traveling Speed | km/h | 0.8-1.2 |
| Entire Machine - Transportation Dimensions | m | 20x3.9x3.8 |

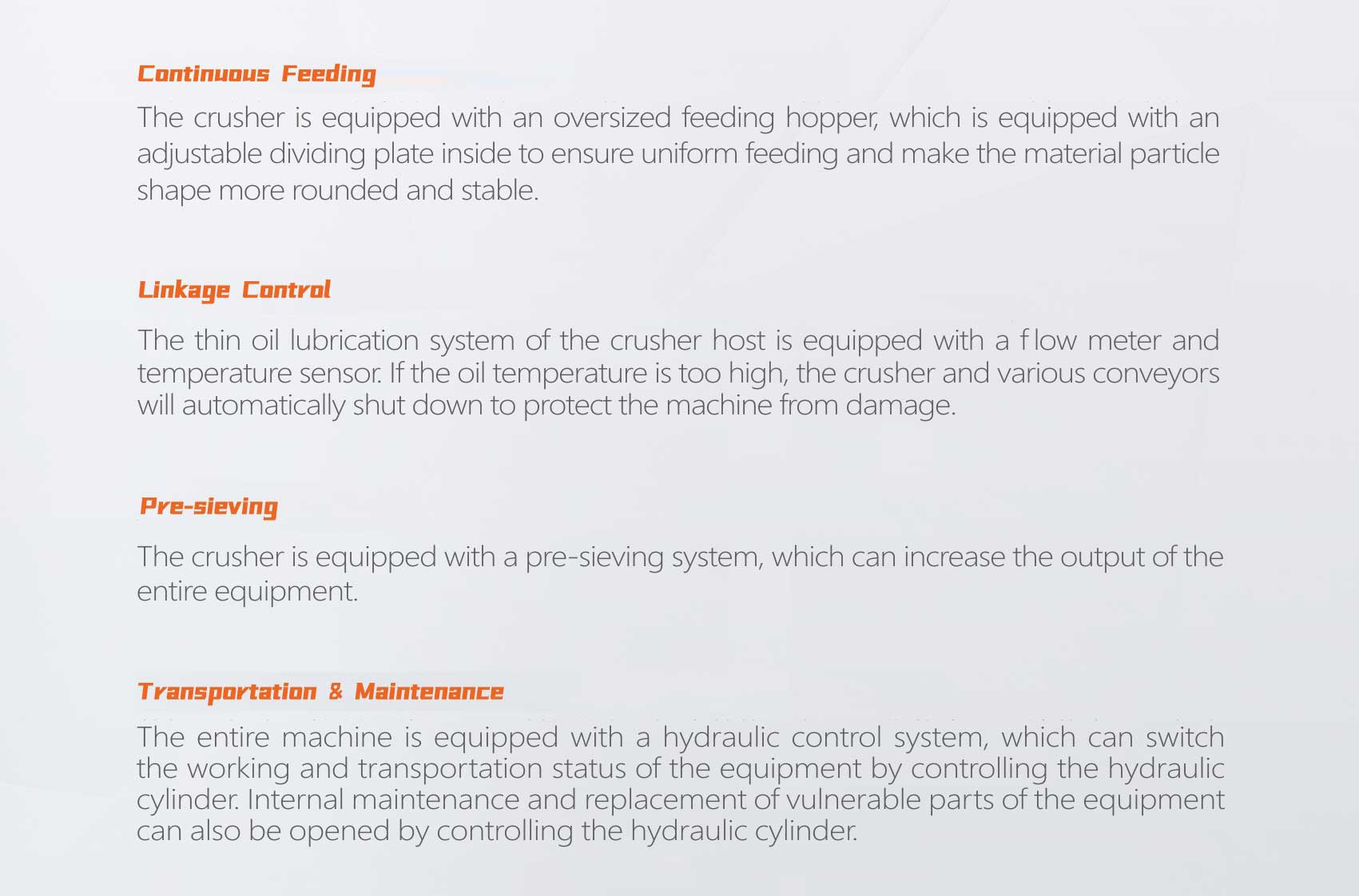

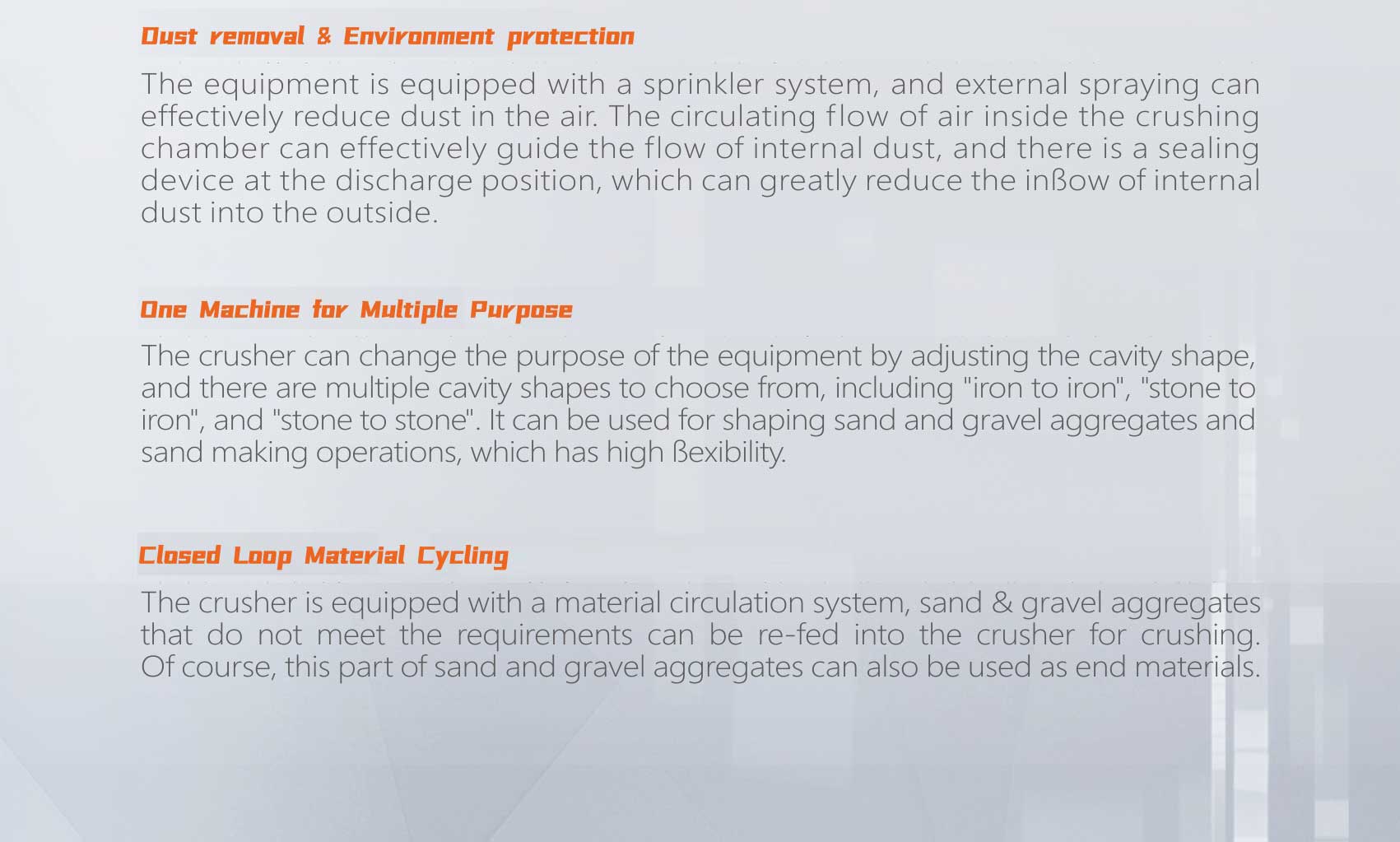

Product Details
